| ขั้นต่ำ: | 5 ชิ้น |
| ราคา: | negotiable |
| วิธีการชำระเงิน: | l/c, d/a, d/p, t/t |

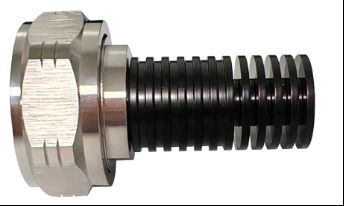

DC-4GHz 10W Dummy Load /Termination Load
| Part Number | VN-LD-4G-10W-ODm-R |
| Operating Frequency ( MHz ) | 0-4000 |
| Impedance ( Ohm ) | 50 |
| VSWR | ≤1.25 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | DIN Male |
| Handling Power (Watt, max) | 10 |
| Dimension (mm)(L×W×H, excl connector) | Φ35X52.1 |
| Packing Dimensions(mm)(L×W×H) | 65X65X85 |
| Packing Carton Size(mm)(L×W×H) | 350X350X185 |
| ROHS Compliance | Yes |
|
|
| ขั้นต่ำ: | 5 ชิ้น |
| ราคา: | negotiable |
| วิธีการชำระเงิน: | l/c, d/a, d/p, t/t |
DC-4GHz 10W Dummy Load /Termination Load
| Part Number | VN-LD-4G-10W-ODm-R |
| Operating Frequency ( MHz ) | 0-4000 |
| Impedance ( Ohm ) | 50 |
| VSWR | ≤1.25 |
| Application | Indoor & Outdoor |
| Degree of Protection | IP65 |
| Operating Temperature ( ℃ ) | -40 ~ + 80 |
| Interface | DIN Male |
| Handling Power (Watt, max) | 10 |
| Dimension (mm)(L×W×H, excl connector) | Φ35X52.1 |
| Packing Dimensions(mm)(L×W×H) | 65X65X85 |
| Packing Carton Size(mm)(L×W×H) | 350X350X185 |
| ROHS Compliance | Yes |
